How do I update the firmware of the Mesh unit?
You may need to update the firmware of your device to solve some issues or to have the latest version of the software.
To update the firmware of the device, you must browse to this page. You will find the firmware file—click on its name to download it.
1 Connect to the Wi-Fi of the device
To proceed, connect to the Web UI. Please follow this procedure: Connecting to the Wi-Fi and Accessing the Web UI

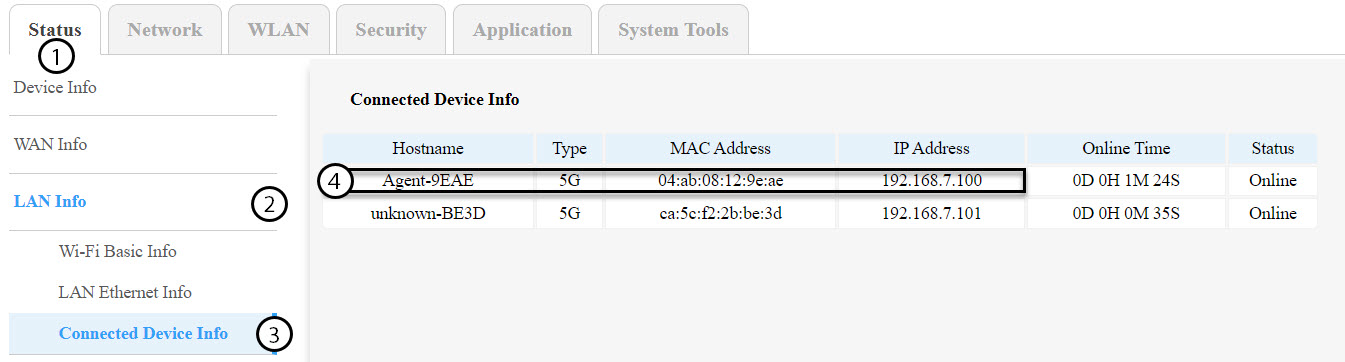

2 Identify Mesh Node IP Addresses
3 Record Each Device’s IP Address
Write down the IP addresses of both agent and master nodes for later use.
Warning: Always update the agent nodes first, and the master node last. You will need to repeat this procedure for each mesh unit.
4 Connect to the Web UI of Each Mesh Node
Connect to the Web UI of each mesh node using the IP address you previously noted. You can follow this procedure:
How do I access the Web UI?
5 Access Firmware Update Menu
For each device, click System Tools, select Device Management, and Firmware Update.
6 Upload and Install Firmware
Select the file by clicking Choose File, then click Update Software.
